Precision Machining Technology for Moulds & Tools
Our expertise spans CNC turning, milling, grinding, drilling, and EDM, ensuring micron-level accuracy for complex geometries. Utilizing CAM-TOOL software, we generate toolpaths directly from CAD surfaces, eliminating approximation errors and achieving ±0.001 mm precision in high-speed machining7. For optical and automotive headlight moulds, our 5-axis high-speed milling with hyperMILL® strategies optimizes tool tilting angles to avoid collisions while maintaining mirror-like finishes6.
Mould Component Manufacturing

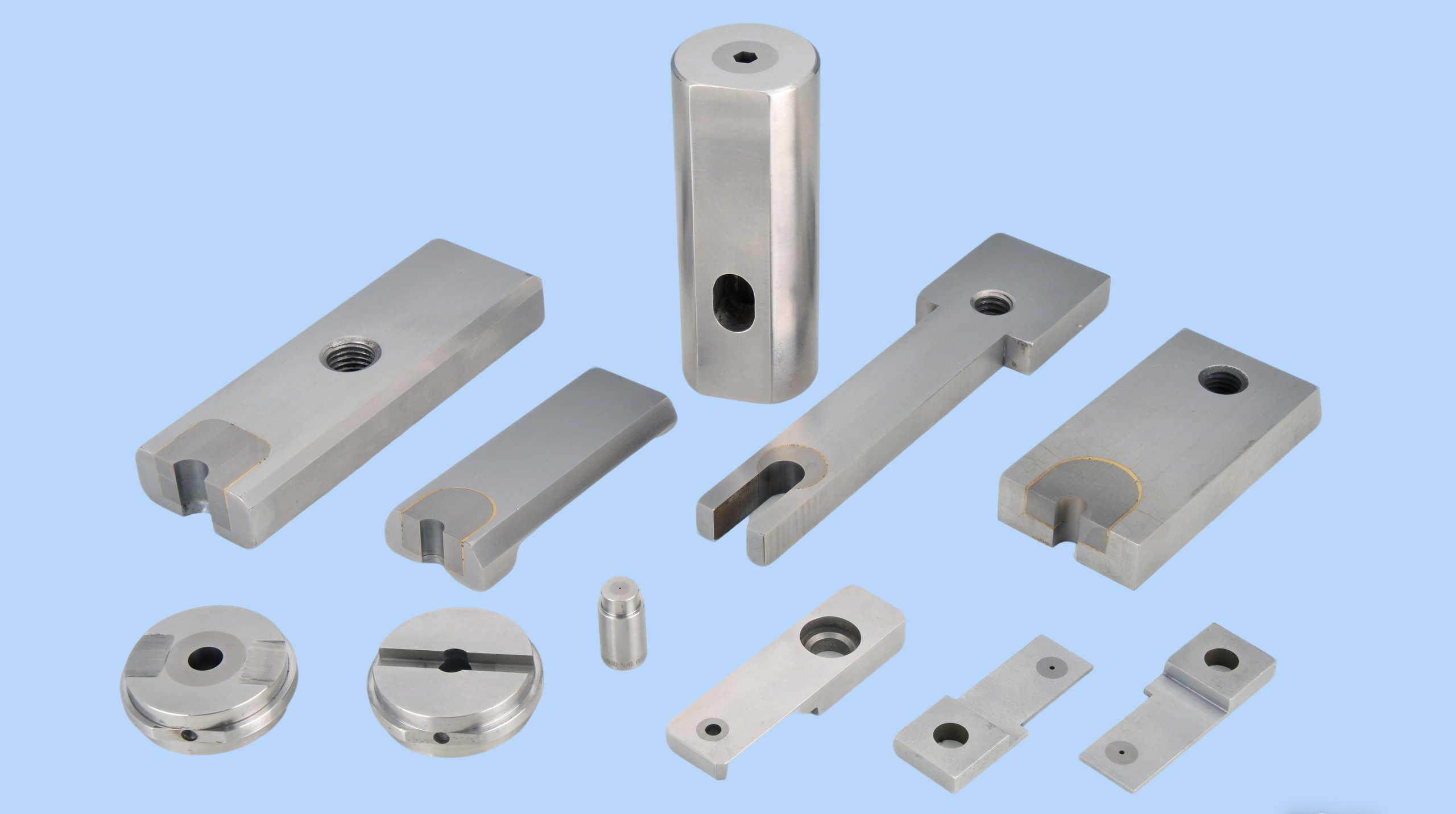

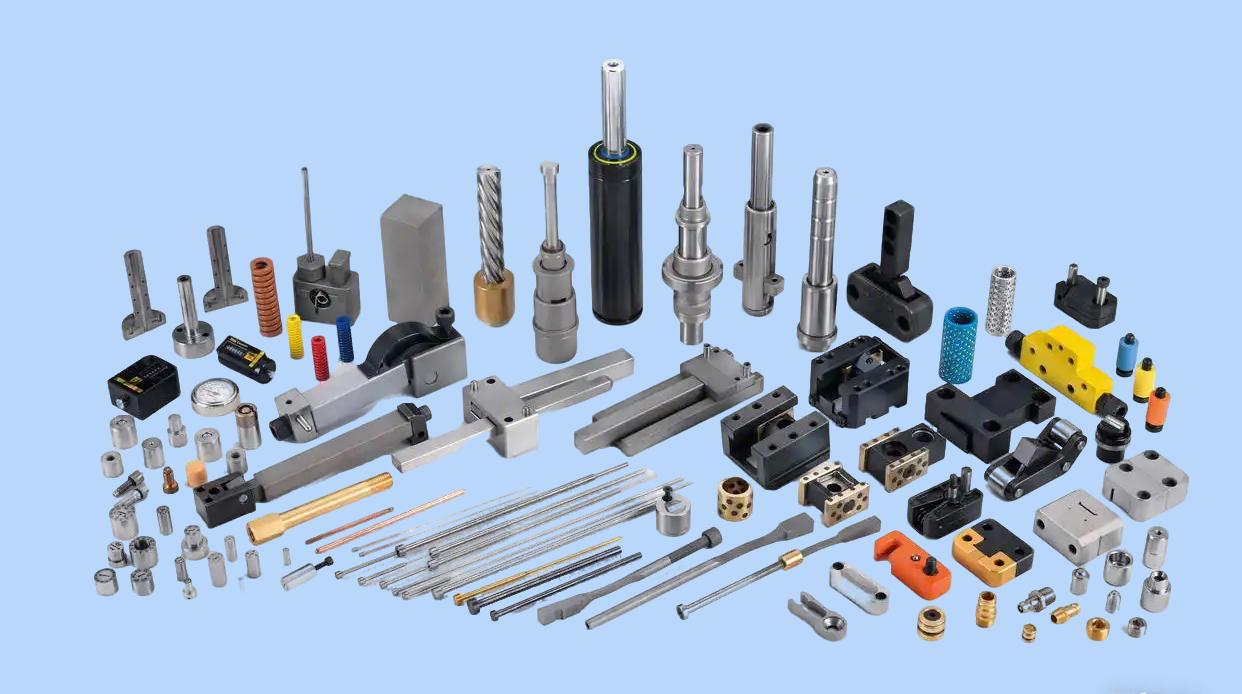

Specialized in critical components:

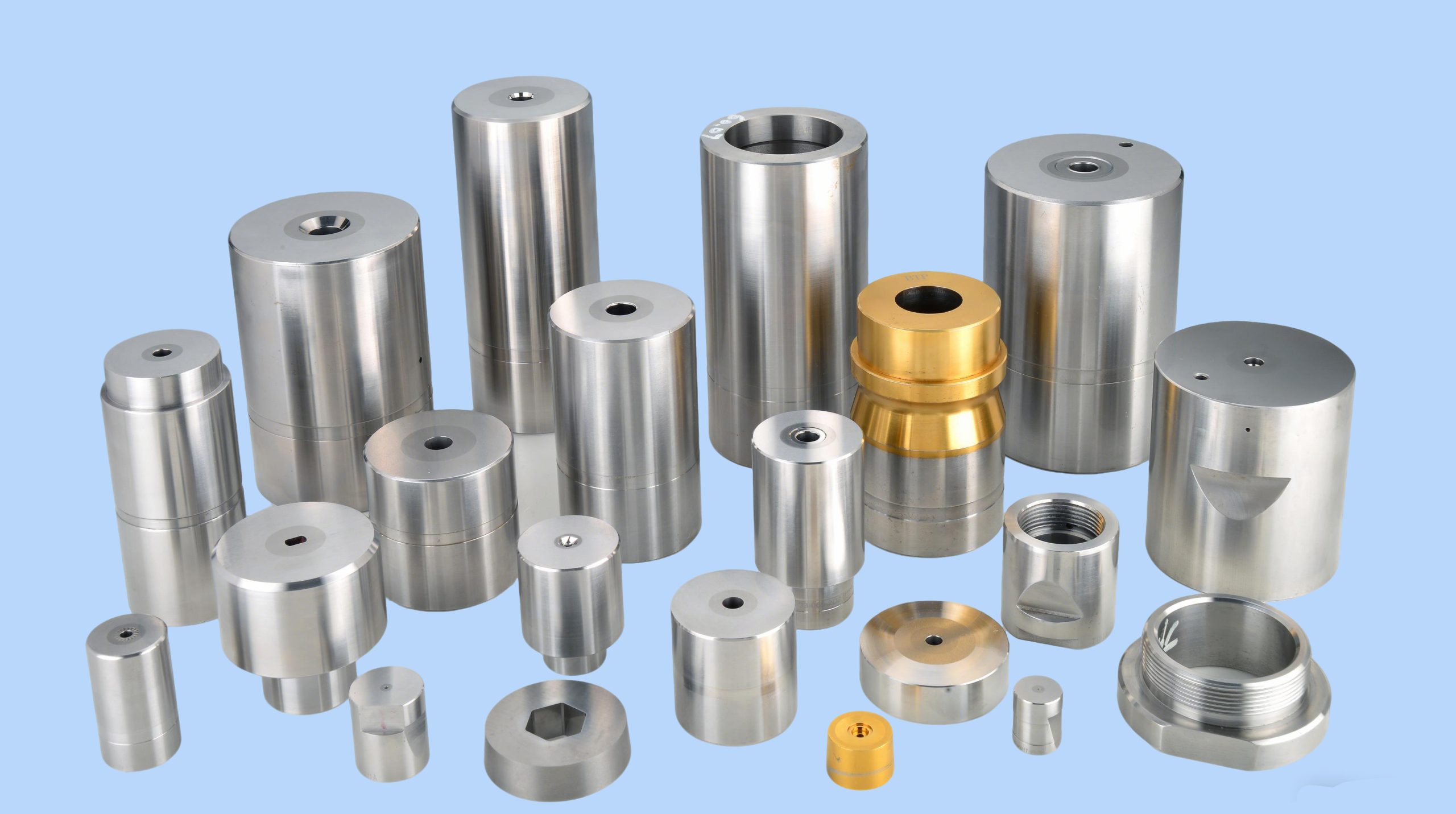

Punches & Matrices: Hardened with tungsten carbide (HV 1,500+) for extended wear resistance.

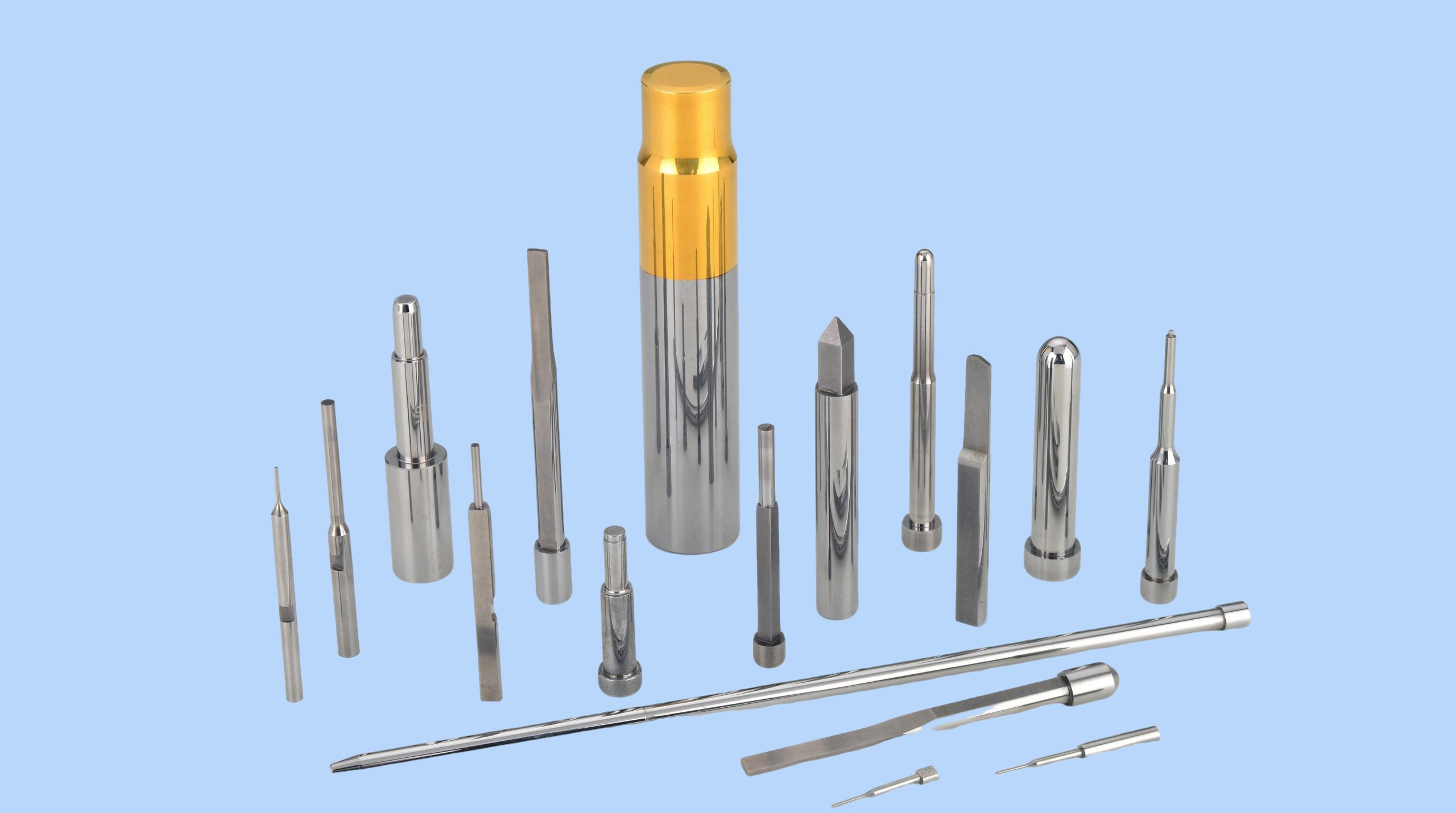

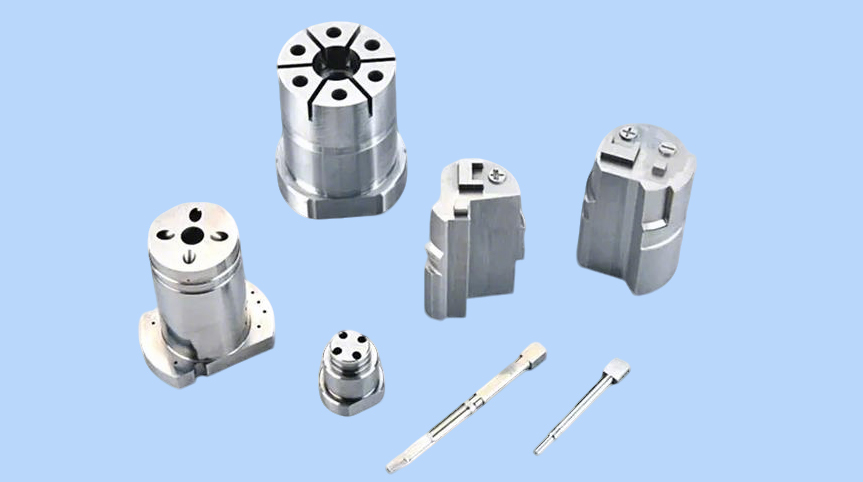

Cores & Inserts: Microfabricated core pins for pipette straws down to 0.01 mm diameter, polished to Ra 0.02 μm via non-contact abrasive flow machining18.
Guiding Elements: Integrated with DLC (Diamond-Like Carbon) coatings to reduce friction by 40% in high-pressure die-casting environments4.
Mirror Polishing & Microfabrication
Achieve sub-micron surface finishes through:
Electrochemical Polishing: For eliminating subsurface defects in medical mould components.
Ultrasonic-Assisted Grinding: Reduces edge chipping in ceramic inserts by 60%8.
Non-Abrasive Flow Technology: Ideal for intricate geometries like bottle cap threaded cores, ensuring uniform material removal1.
Integral Mould Development
We design and manufacture moulds for diverse applications:
Injection Moulding: Multi-cavity systems with hot runner optimization, reducing cycle time by 25%10.
Die-Casting: Thin-wall aluminium moulds (0.5 mm thickness) with conformal cooling channels.

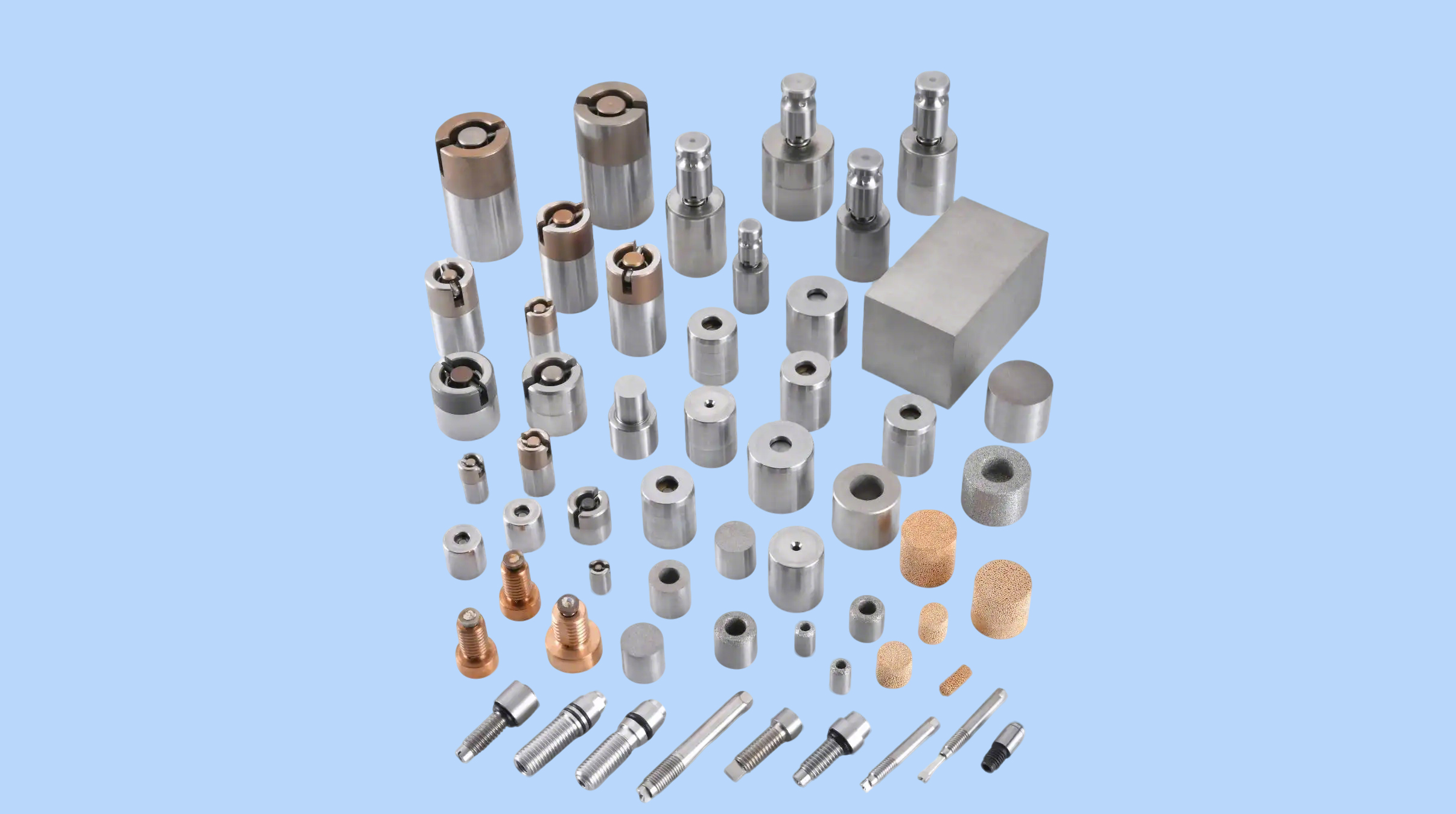

Stamping & Cold Heading: Carbide progressive dies achieving 1 million+ cycles without regrinding3.
Gear & Thread Grinding Innovations
Leveraging CNC gear profile grinding and thread grinding technologies from the research of Chongqing University’s State Key Laboratory of Mechanical Transmission:
Precision Gear Machining: Error reduction algorithms minimize tooth flank deviations to ≤3 μm9.
Threaded Core Manufacturing: For bottle blank moulds, utilizing CBN wheels with 80 m/s grinding speeds for Ra 0.1 μm finishes5.
Surface Enhancement Technologies
PVD Coating: Titanium nitride (TiN) and AlCrN coatings enhance hardness to 3,500 HV, extending mould lifespan by 5× in abrasive environments48.
DLC Film Deposition: Corrosion-resistant layers for marine hydraulic components, tested at 5,000-meter depths without degradation4.
Material Expertise
Tungsten Carbide: Machined via wire-EDM with 0.005 mm precision for punch-die clearance control.
Industrial Ceramics: HIP-sintered Si3N4 components with 99.9% density for high-temperature extrusion moulds8.
Industry Applications
Optical Moulds: 5-axis mirror milling achieves λ/4 surface flatness for lens production.
Automotive: Headlight reflector moulds with <0.05 mm wall thickness variations6.
Medical: Microfluidic chip moulds with 10 μm channel accuracy via laser + EDM hybrid machining.
Why Choose Us?
Reduced Downtime:
Modular tooling systems (e.g., ModuMini-Turn) cut blade change time by 66%, saving 160 minutes daily2.
Certified Quality:
ISO 13485-compliant for medical moulds; 100% CMM inspection.
Global Collaboration:
Partnered with Elsevier to publish Precision CNC Machining for High-Performance Gears, sharing R&D insights globally9.Contact Us
FREQUENTLY ASKED QUESTIONS
Dear Customer,
Thank you for contacting China Di Xin Technology regarding your customized production project! 🌟
In order to provide you with the most accurate quote within 24 hours, please provide the following details:
1、 Technical Documents:
2D Drawings (PDF/DWG/DXF)
3D Models (STEP/IGES/SOLIDWORKS)
(This ensures that we are fully aware of your specifications)
2、Ordering Quantity:
Estimated Units Required (for material and process optimization)
3、 Contact Info: Preferred email address
WhatsApp/Telegram (optional for faster communication)
Why work with us?
✅ Over 20 years of experience in precision machining and OEM solutions
✅ ISO 9001 certified facility with over 100 CNC machines
✅ Tooling Design & Engineering - Die Casting, Stamping, and Injection Molds
✅ Includes free DFM (Design for Manufacturing) analysis
Need design help?
Our engineering team is ready to help! Simply reply "I need design support"
We aim to send an official quote within 24 hours of receiving complete information.
We look forward to bringing your concept to life!
